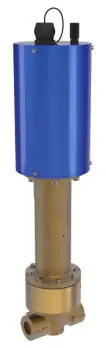

The Model CRL-34 Electronic Actuated Pressure Sustaining Pilot Control provides remote set-point adjustment and accurate upstream pressure control on Cla-Val Pacific 350 Series Electronic Control Valves. Remote set-point command signals can be from Cla-Val Pacific’s VC-22D e-Controller or any SCADA-type control system using an analog 4-20 mA signal, by contact closure for counter-clockwise / clockwise rotation or through Modbus RTU.
The CRL-34 is an ideal companions to the products listed below, combining to create a highly effective control option for pressure sustaining applications.
- VC-22D Valve Controller
- X143IP Power Generator
- X144D e-FlowMeter
- X145 Electronic Display
Product Advantages
- Ideal for Electronic Actuated Pressure Sustaining
- Simplified Remote Valve Set-Point Control
- Modbus RTU Communication
- Easy integration with VC-22D Electronic Valve Controller
- 10 to 32 VDC Input Power
- Isolated Input
- Reverse Polarity Protection
- IP-68 Submersible
Typical Application
The CRL-34 is installed on Cla-Val Pacific 350 Series valves to maintain constant upstream pressure within close limits and require this pressure to be changed from a remote location. This pilot can be an effective solution for lowering costs associated with "confined space" requirements by eliminating the need for entry in valve structure for set-point adjustment. The 350 Series Valve can also be used for pressure relief, back pressure or unloading functions in a bypass system.
